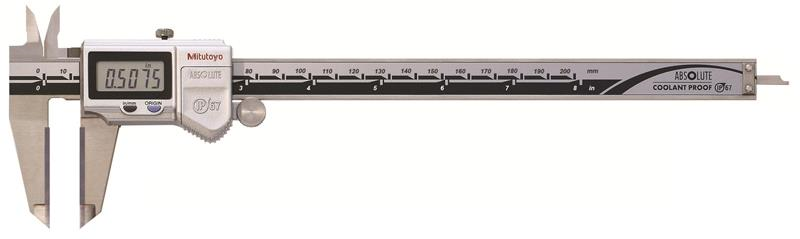

0-8 Inch/200mm, .0005 Inch/0.01mm, IP67 ABSOLUTE Digimatic Caliper, No Output, Carbide OD Jaws

  • Item Code: 500-732-20
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Dust, water, oil, and coolant protection level IP65.
    • Automatic power-on/off.
    • Carbide-tipped jaws for ID measurement

Tech Specs

Back To Top
Range 0 - 8 In/0 - 200mm
Accuracy ±.001 In
Case Material Plastic Case
Data Output N
Primary Measuring Range Upper - Metric 150mm
Individual or Set Individual
IP Rating IP67
Case Part Number 05RAB235
Primary Measuring Range Lower - Metric 0mm
Primary (Outside Diameter) Contact Point Material Carbide
Brand Mitutoyo
Mechanical or Digital Digimatic
Resolution or Graduation .0005 In
Secondary (Inside Diameter) Contact Point Material Carbide
