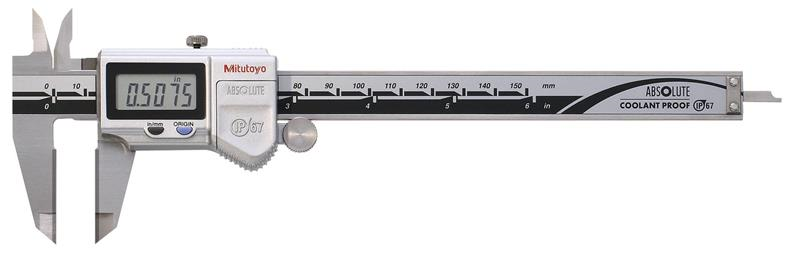

0-6 Inch/150mm, .0005 Inch/0.01mm, IP67 ABSOLUTE Digimatic Caliper, No Output, Carbide OD/ID Jaws

  • Item Code: 500-733-20
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Advanced design styling, easy to use-no need to clean.
    • Incorporates absolute measurement system.
    • Automatic power-on/off.

Tech Specs

Back To Top
Secondary (Inside Diameter) Contact Point Material Carbide
Accuracy ±.001 In
Case Material Plastic Case
Case Part Number 05RAB235
Depth Rod Shape Rectangular
Primary Measuring Range Upper - Metric 150mm
Range 0 - 6 In/0 - 150mm
Data Output N
Mechanical or Digital Digimatic
Individual or Set Individual
IP Rating IP67
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Lower - Metric 0mm
Brand Mitutoyo
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Upper - Inch 6 In
Resolution or Graduation .0005 In
