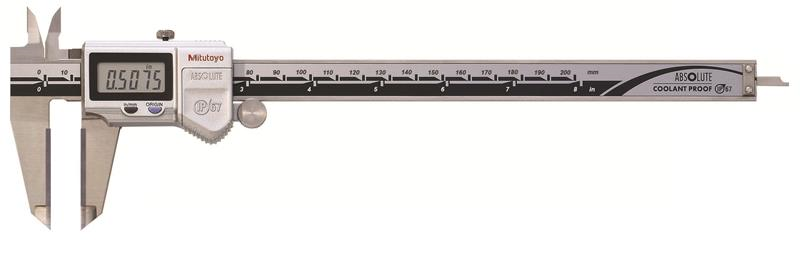

0-8 Inch(200mm), 0.0005 Inch(0.01mm), IP67 ABSOLUTE Digimatic Caliper, No Output, Carbide OD/ID Jaws

  • Item Code: 500-734-20
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Advanced design styling, easy to use-no need to clean.
    • Incorporates absolute measurement system.
    • Automatic power-on/off.

Tech Specs

Back To Top
Brand Mitutoyo
Mechanical or Digital Digimatic
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Upper - Inch 8 In
Primary Measuring Range Lower - Metric 0mm
Primary Measuring Range Upper - Metric 200mm
Secondary (Inside Diameter) Contact Point Material Carbide
Case Material Plastic Case
Case Part Number 05RAB350
Individual or Set Individual
Accuracy ±.001 In
Data Output N
Depth Rod Shape Rectangular
IP Rating IP67
Range 0 - 8 In/0 - 200mm
Resolution or Graduation .0005 In
