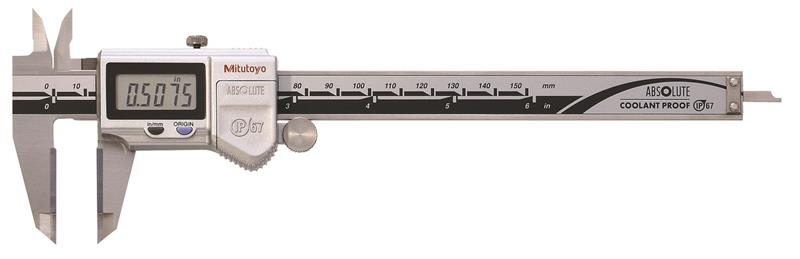

0-6 Inch/150mm, .0005 Inch/0.01mm, IP67 ABSOLUTE Digimatic Caliper, With SPC Data Output, Carbide OD Jaws

  • Item Code: 500-735-20
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Advanced design styling, easy to use-no need to clean.
    • Incorporates absolute measurement system.
    • Automatic power-on/off.

Tech Specs

Back To Top
Case Part Number 05RAB350
Individual or Set Individual
IP Rating IP67
Accuracy ±.001 In
Case Material Plastic Case
Depth Rod Shape Rectangular
Primary Measuring Range Upper - Metric 150mm
Range 0 - 6 In/0 - 150mm
Data Output Y
Data Output Cable - 40 inch 05CZA624
Data Output Cable - 80 inch 05CZA625
Resolution or Graduation .0005 In
Brand Mitutoyo
Mechanical or Digital Digimatic
Primary Measuring Range Lower - Inch 0 In
Secondary (Inside Diameter) Contact Point Material Carbide
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Metric 0mm
Primary Measuring Range Upper - Inch 6 In
