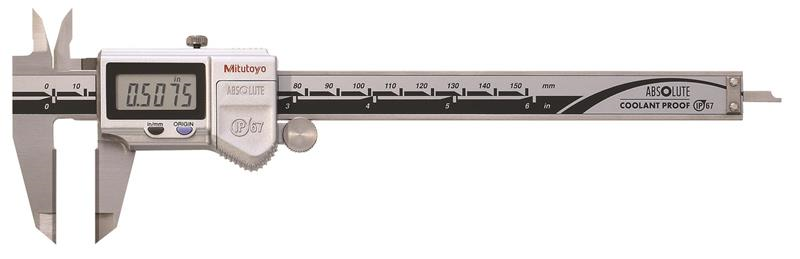

0-6 Inch/150mm, .0005 Inch/0.01mm, IP67 ABSOLUTE Digimatic Caliper, With SPC Data Output, Carbide OD/ID Jaws

  • Item Code: 500-737-20
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Advanced design styling, easy to use-no need to clean.
    • Incorporates absolute measurement system.
    • Automatic power-on/off.

Tech Specs

Back To Top
Data Output Cable - 40 inch 05CZA624
Accuracy ±.001 In
Case Material Plastic Case
Depth Rod Shape Rectangular
Primary Measuring Range Upper - Metric 150mm
Range 0 - 6 In/0 - 150mm
Data Output Y
IP Rating IP67
Mechanical or Digital Digimatic
Brand Mitutoyo
Primary (Outside Diameter) Contact Point Material Carbide
Secondary (Inside Diameter) Contact Point Material Carbide
Case Part Number 05RAB350
Individual or Set Individual
Primary Measuring Range Lower - Metric 0mm
Data Output Cable - 80 inch 05CZA625
Primary Measuring Range Upper - Inch 6 In
Resolution or Graduation .0005 In
Primary Measuring Range Lower - Inch 0 In
