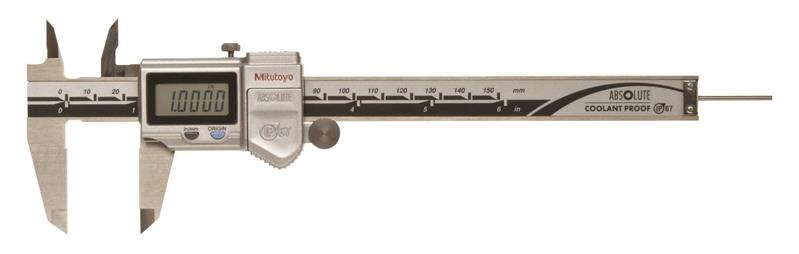

0-6 Inch/150mm, .0005 Inch/0.01mm, IP67 ABSOLUTE Digimatic Caliper, No Output, .075 Inch Round Depth Bar

  • Item Code: 500-768-20
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Advanced design styling, easy to use-no need to clean.
    • Incorporates absolute measurement system.
    • Automatic power-on/off.

Tech Specs

Back To Top
IP Rating IP67
Primary Measuring Range Upper - Metric 150mm
Resolution or Graduation .0005 In
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Metric 0mm
Case Material Plastic Case
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Upper - Inch 6 In
Range 0 - 6 In/0 - 150mm
Secondary (Inside Diameter) Contact Point Material Carbide
Case Part Number 05RAB350
Individual or Set Individual
Accuracy ±.001 In
Brand Mitutoyo
Data Output N
Depth Rod Shape Round
Mechanical or Digital Digimatic
