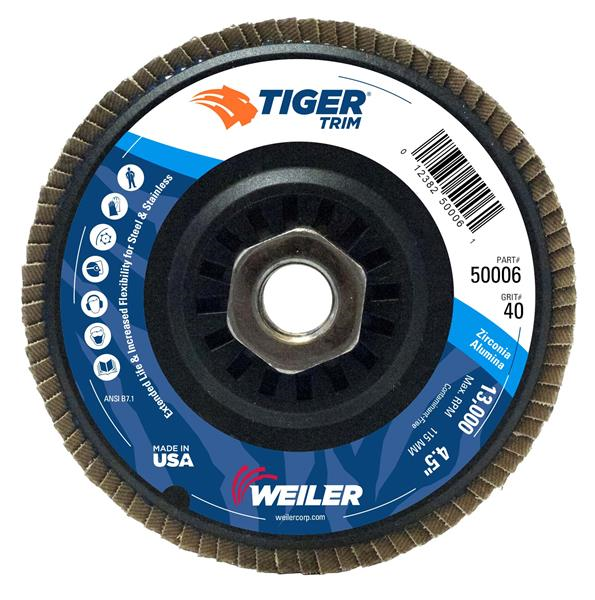

4-1/2 in. Conical Type 29 Trimmable Backing 40 Grit Zirconia Alumina (40Z) 5/8"-11 UNC Nut Tiger Trim Abrasive Flap Disc

  • Item Code: 50006
  • Brand: Weiler
  • Unit Size: 1

Description

Tiger Trimmable 4.5 inch conical flap discs provide flexibility and versatility when grinding steel and stainless steel. A trimmable backing plate allows the operator to increase flap overhang. This feature provides the versatility to adjust for hard-to-reach areas such as fillet welds and irregular shapes.

The type 29 conical disc shape maximizes surface contact when grinding between 15 deg. - 35 deg. for aggressive stock removal while the 40 grit abrasive grain is best for edge beveling, chamfering, weld grinding, and blending with a right angle grinder. This disc offers a metal 5/8"-11 nut that allows for quick changeovers and prevents the disc from sticking to the spindle.

ORDER IN MULTIPLES of 10

Features Tech Specs

Features

Back To Top
    • Composite backing that can be trimmed, exposing more abrasive material.
    • Provides versatility to adjust for hard-to-reach areas such as fillet welds and irregular shapes.
    • Composite backing will not mark the workpiece.
    • Contaminant-free (contains less than 0.1% Fe, S, Cl).
    • Self-sharpening zirconia alumina (ZA) grains hold up under high temperatures and extreme pressure.
    • 5/8"-11 metal nut allows for quick spin-on, spin-off changeover and eliminates cross-threading or sticking to spindle due to heat build-up.

Tech Specs

Back To Top
Standard Pack Quantity 10
Grade Medium
Maximum RPM 13000
Brand Weiler
Diameter 4-1/2"
Grain Type Zirconia Alumina (ZA)
Series Tiger
Grit 40
Color Blue
