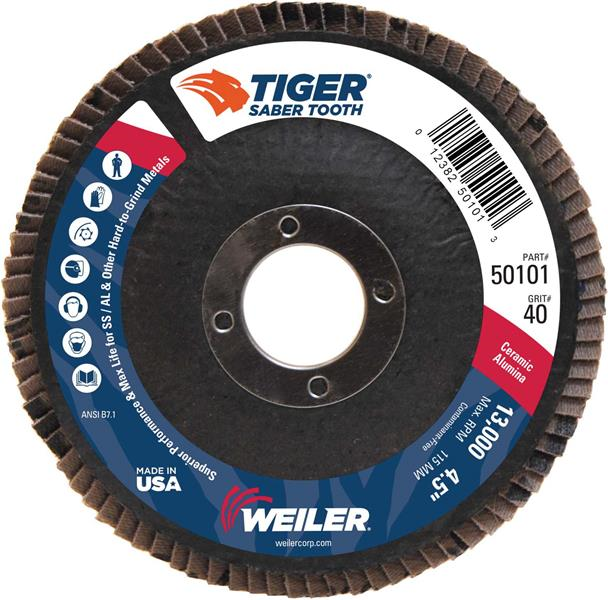

4-1/2 in. Conical Type 29 Phenolic Backing 40 Grit (40C) 7/8 in. Arbor Hole Tiger Ceramic Abrasive Flap Disc
- Item Code: 50101
- Brand: Weiler
- Unit Size: 1
Description
Tiger Ceramic 4.5 inch conical flap discs are designed for maximum performance when grinding aluminum, stainless steel and other hard-to-grind metals. A top coat protects high-value parts stainless steel parts from heat discolorization and also prevents loading on soft alloys like aluminum.
Ceramic grains utilize a crystalline structure that is designed with millions of fracture points that self-sharpen at a higher rate than other grains. The result is a high material removal rate, cool grinding, and reduced friction at less pressure which reduces operator fatigue.
The type 29 conical disc shape maximizes surface contact when grinding between 15 deg. - 25 deg. for aggressive stock removal on flat surfaces while the 40 grit abrasive grain is best for edge beveling, chamfering, weld grinding, and blending with a right angle grinder.
ORDER IN MULTIPLES of 10
Features
Back To Top- Top coated for cool grinding, protecting high-value parts from heat discoloration.
- Prevents loading on soft alloys like aluminum.
- Contaminant-free (contains less than 0.1% Fe, S, Cl).
- Conical disc shape maximizes surface contact for aggressive stock removal on flat surfaces.
- Ceramic alumina (CA) grains are self-sharpening micro-fracturing crystals that expose sharp edges, maintaining a high cut-rate for the life of the grain.
- 7/8" open or plain arbor offers a cost-effective mounting option when using adapting nuts.
- Best on steel, stainless steel, aluminum, and other hard-to-grind metals.
Tech Specs
Back To Top| Color | Red |
|---|---|
| Brand | Weiler |
| Grain Type | Ceramic |
| Standard Pack Quantity | 10 |
| Diameter | 4-1/2" |
| Grade | Medium |
| Maximum RPM | 13000 |
| Series | Tiger |
| Grit | 40 |
