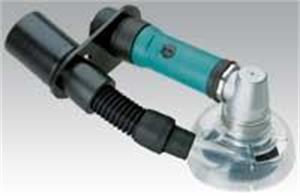

.4 hp, 15,000 RPM, Rear Exhaust, Locking-Type Disc, Trimmed Shroud, 3 Inch (76 mm) Dia. Right Angle Disc Sander, Central Vacuum

  • Item Code: 50211-DYNABRADE
  • Brand: Dynabrade
  • Unit Size: 1

Description

Powerful .4 hp (298 W) Air Motor for Smooth, Controlled Sanding. Unique Vacuum Shroud Diverts Dust and Debris to Vacuum Source. For Use With 3" (76 mm) Diameter Locking-Type Abrasive Discs

Dynabrades Vacuum Disc Sander powers 3" (76 mm) diameter Abrasive Discs, for efficient material removal on non-ferrous surfaces such as carbon fiber, fiberglass, painted aluminum and more. As tool is sanding, flexible Vacuum Shroud captures dust, debris and contaminants (including Hexavalent Chromium) to vacuum source - ensuring cleaner, safer workplace. This is an essential tool for aerospace, automotive, marine and transportation industries!

Features Tech Specs

Features

Back To Top
    • Each model includes 51346 Backing Pad, for 3" (76 mm) diameter locking-type abrasive discs. 1-1/4" (32 mm) diameter vacuum port ready for connection to external or central vacuum system.
    • Trimmed Shroud height of 1" (25 mm) accommodates 3" (76 mm) diameter locking-type abrasive discs (sold separately). Vacuum Shroud constructed of high-quality clear urethane. Unique view -port allows operator to see edge of sanding disc, and offers optimum view of work surface. Flexible, non-marring Vacuum Shroud allows capture of dust, debris and contaminants (including Hexavalent Chromium) for cleaner, safer work environment. Vacuum Shroud angle of 6 degrees ensures ideal surface contact for maximum debris extraction.
    • Wick-Lube system extends gear life with simple lubrication.

Tech Specs

Back To Top
Backing Pad Diameter Inch (mm) 3" (76)
Brand Dynabrade
Free Speed RPM 15,000
hp (W) .4 (298)
Length Inch (mm) 9-11/16" (247)
Tool Spindle Thread 1/4"-20 Male
Exhaust Type Rear
Height Inch (mm) 3-7/8" (97)
Hose I.D. Size Inch (mm) 1/4" (6)
