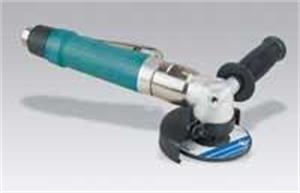

1 hp, 12,000 RPM, Rear Exhaust, 3/8-24 Spindle Thread, 4 Inch (102 mm) Dia. Right Angle Depressed Center Wheel Grinder

  • Item Code: 50302-DYNABRADE
  • Brand: Dynabrade
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Depressed Center Wheel Grinder, for fast weld and stock removal, rust and scale removal, heavy deburring.
    • 4" Diameter, Right Angle, 1 hp, Rear Exhaust, 12,000 RPM.
    • Accepts optional 4" diameter Type 27 Depressed Center Wheel, with 5/8" center hole (wheel width of 1/8" to 1/4").
    • Powerful high-torque grinding action; standard muffler for reduced sound levels.
    • Reversible side handle for left or right hand operation.

Tech Specs

Back To Top
Hose I.D. Size Inch (mm) 3/8" (10)
Spindle Thread 3/8"-24 Male
Length Inch (mm) 11-3/4" (299)
Exhaust Type Rear
Brand Dynabrade
hp (W) 1
Height Inch (mm) 3-5/8" (92)
Type 27 Grinding Wheel Dia. Inch (mm) 4" (102)
Free Speed RPM 12,000
