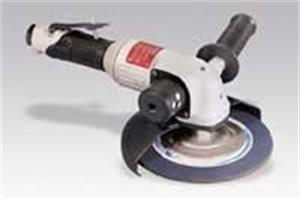

1.2 hp, 6,000 RPM, Side Exhaust, 5/8-11 Spindle Thread, 7 Inch (178 mm) Dia. Right Angle Depressed Center Wheel Grinder

  • Item Code: 50350-DYNABRADE
  • Brand: Dynabrade
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Depressed Center Wheel Grinder, for fast weld and stock removal, rust and scale removal, heavy deburring.
    • 7" Diameter, Right Angle, 1.2 hp, Side Exhaust, 6,000 RPM.
    • Accepts optional 7" diameter Type 27 Depressed Center Wheel, with 7/8" center hole (wheel width of 1/8" to 1/4").
    • Includes 11399 Type 27 Wheel Mounting Adapter Kit, with front and rear flange plus hex wrench.
    • Optional 52190 Guard is available, for left hand operation.

Tech Specs

Back To Top
Free Speed RPM 6,000
Height Inch (mm) 4-5/8" (118)
hp (W) 1.2
Length Inch (mm) 11-3/4" (299)
Hose I.D. Size Inch (mm) 1/2" (13)
Type 27 Grinding Wheel Dia. Inch (mm) 7" (178)
Spindle Thread 5/8"-11 Male
Exhaust Type Side
Brand Dynabrade
