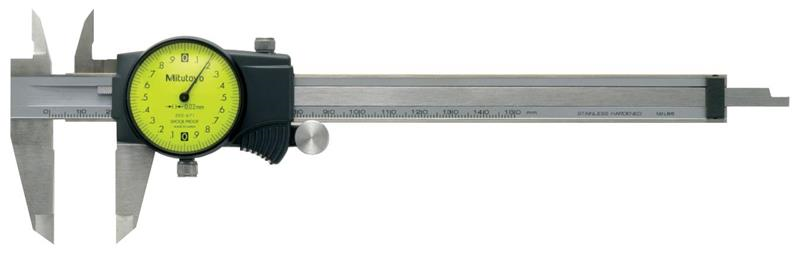

0-150mm, 0.02mm Dial Caliper, 2mm/Revolution

  • Item Code: 505-730
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New designed dial movement for ultra smooth sliding and high shock protection.
    • Titanium Nitride (TiN) coating is applied to the sliding surface to increase wear resistance.
    • Lock screw for dial bezel and for holding the sliding jaw postion.

Tech Specs

Back To Top
Face Color Yellow
Range 0 - 150mm
Resolution or Graduation 0.02mm
Full Stroke Range 2mm
Case Material Plastic Case
Individual or Set Individual
Case Part Number 05RAB235
Primary Measuring Range Upper - Metric 150mm
Secondary (Inside Diameter) Contact Point Material Hardened Steel
Depth Rod Shape Rectangular
Accuracy ±0.03mm
Dial Face Reading 0-10-20
Primary (Outside Diameter) Contact Point Material Hardened Steel
Primary Measuring Range Lower - Metric 0mm
Brand Mitutoyo
Mechanical or Digital Mechanical
