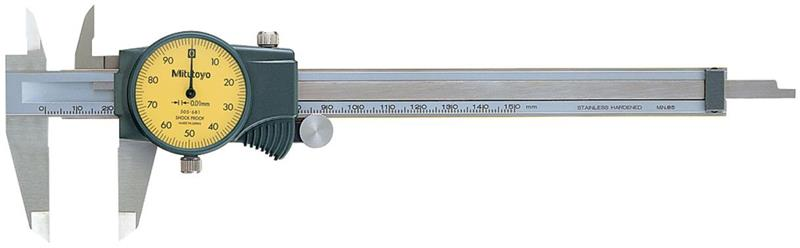

0-150mm, 0.01mm Dial Caliper, 1mm/Revolution

  • Item Code: 505-732
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New designed dial movement for ultra smooth sliding and high shock protection.
    • Titanium Nitride (TiN) coating is applied to the sliding surface to increase wear resistance.
    • Lock screw for dial bezel and for holding the sliding jaw postion.

Tech Specs

Back To Top
Full Stroke Range 1mm
Brand Mitutoyo
Face Color White
Mechanical or Digital Mechanical
Case Material Plastic Case
Depth Rod Shape Rectangular
Primary Measuring Range Upper - Metric 150mm
Accuracy ±0.03mm
Dial Face Reading 0-10-20
Primary (Outside Diameter) Contact Point Material Hardened Steel
Primary Measuring Range Lower - Metric 0mm
Range 0 - 150mm
Individual or Set Individual
Case Part Number 05RAB235
Resolution or Graduation 0.01mm
Secondary (Inside Diameter) Contact Point Material Hardened Steel
