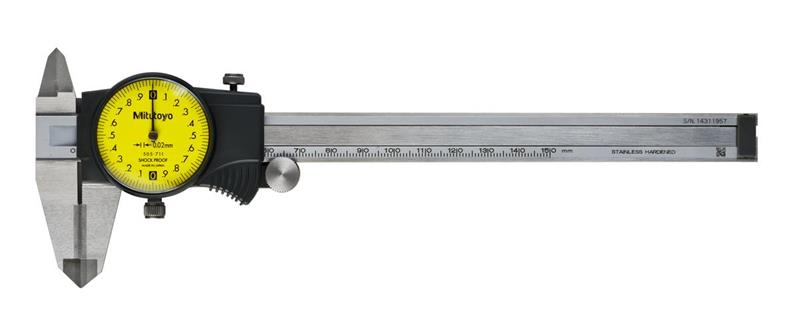

0-150mm, 0.02mm Dial Caliper, 2mm/Revolution, Carbide OD and ID Jaws

  • Item Code: 505-735
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New designed dial movement for ultra smooth sliding and high shock protection.
    • Titanium Nitride (TiN) coating is applied to the sliding surface to increase wear resistance.
    • Lock screw for dial bezel and for holding the sliding jaw postion.

Tech Specs

Back To Top
Dial Face Reading 0-10-20
Face Color White
Full Stroke Range 2mm
Primary Measuring Range Lower - Metric 0mm
Brand Mitutoyo
Resolution or Graduation 0.02mm
Depth Rod Shape Rectangular
Range 0 - 6 In
Primary (Outside Diameter) Contact Point Material Carbide
Secondary (Inside Diameter) Contact Point Material Hardened Steel
Case Material Plastic Case
Case Part Number 05RAB235
Individual or Set Individual
Primary Measuring Range Upper - Metric 150mm
Mechanical or Digital Mechanical
Accuracy ±0.03mm
