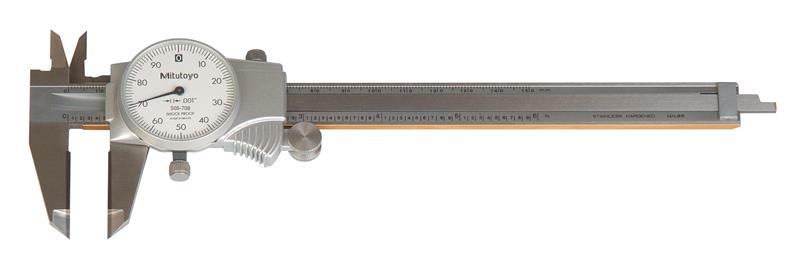

0-6 Inch, .001 Inch Dial Caliper, .1 Inch/Revolution, Carbide OD Jaws

  • Item Code: 505-736
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New designed dial movement for ultra smooth sliding and high shock protection.
    • Titanium Nitride (TiN) coating is applied to the sliding surface to increase wear resistance.
    • Lock screw for dial bezel and for holding the sliding jaw postion.

Tech Specs

Back To Top
Brand Mitutoyo
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Upper - Inch 6 In
Dial Face Reading 0-100
Face Color White
Full Stroke Range .1 In
Individual or Set Individual
Range 0 - 6 In
Accuracy ±.001 In
Case Material Plastic Case
Case Part Number 05RAB235
Depth Rod Shape Rectangular
Resolution or Graduation .001 In
Secondary (Inside Diameter) Contact Point Material Hardened Steel
