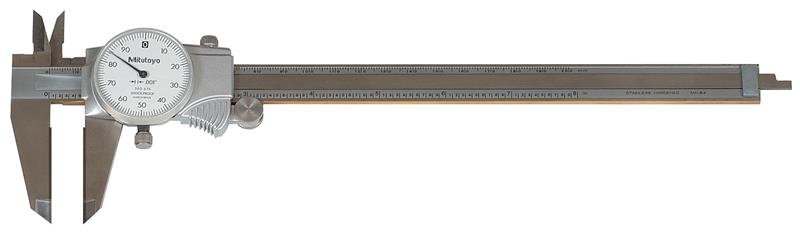

0-8 Inch, .001 Inch Dial Caliper, .1 Inch/Revolution, White Face, Carbide OD Jaws

  • Item Code: 505-737
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New designed dial movement for ultra smooth sliding and high shock protection.
    • Titanium Nitride (TiN) coating is applied to the sliding surface to increase wear resistance.
    • Lock screw for dial bezel and for holding the sliding jaw postion.

Tech Specs

Back To Top
Dial Face Reading 0-100
Face Color White
Brand Mitutoyo
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Secondary (Inside Diameter) Contact Point Material Hardened Steel
Depth Rod Shape Rectangular
Range 0 - 8 In
Full Stroke Range .1 In
Case Part Number 05RAB350
Individual or Set Individual
Primary Measuring Range Upper - Inch 8 In
Resolution or Graduation .001 In
Accuracy ±.002 In
Case Material Plastic Case
Primary Measuring Range Lower - Inch 0 In
