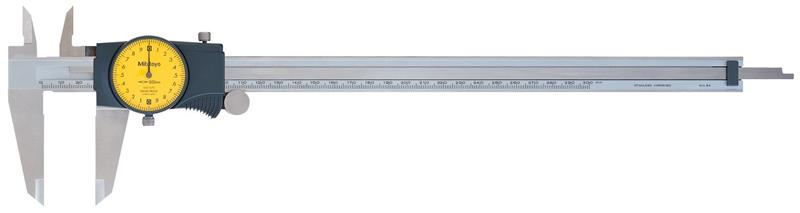

0-300mm, 0.02mm Dial Caliper, 2mm/Revolution

  • Item Code: 505-745
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New designed dial movement for ultra smooth sliding and high shock protection.
    • Titanium Nitride (TiN) coating is applied to the sliding surface to increase wear resistance.
    • Lock screw for dial bezel and for holding the sliding jaw postion.

Tech Specs

Back To Top
Case Part Number 05RZA077
Mechanical or Digital Mechanical
Primary Measuring Range Upper - Metric 300mm
Secondary (Inside Diameter) Contact Point Material Hardened Steel
Accuracy ±0.04mm
Case Material Plastic Case
Face Color Yellow
Full Stroke Range 2mm
Dial Face Reading 0-10-20
Primary (Outside Diameter) Contact Point Material Hardened Steel
Range 0 - 300mm
Resolution or Graduation 0.02mm
Individual or Set Individual
Primary Measuring Range Lower - Metric 0mm
Brand Mitutoyo
Depth Rod Shape Rectangular
