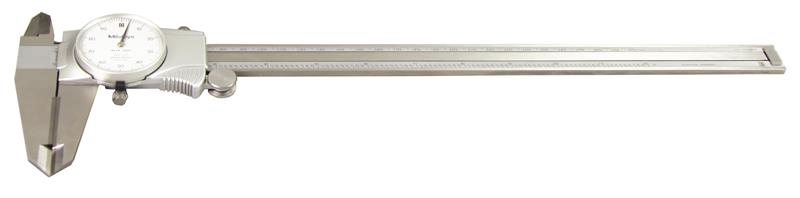

0-12 Inch, 0.001 Inch Dial Caliper, 0.1 Inch/Revolution, White Face, Carbide OD

  • Item Code: 505-747
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New designed dial movement for ultra smooth sliding and high shock protection.
    • Titanium Nitride (TiN) coating is applied to the sliding surface to increase wear resistance.
    • Lock screw for dial bezel and for holding the sliding jaw postion.

Tech Specs

Back To Top
Full Stroke Range .1 In
Case Material Plastic Case
Face Color White
Dial Face Reading 0-100
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Secondary (Inside Diameter) Contact Point Material Hardened Steel
Accuracy ±.002 In
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Upper - Inch 12 In
Range 0 - 12 In
Brand Mitutoyo
Depth Rod Shape Rectangular
Resolution or Graduation .001 In
Case Part Number 05RAB350
Individual or Set Individual
