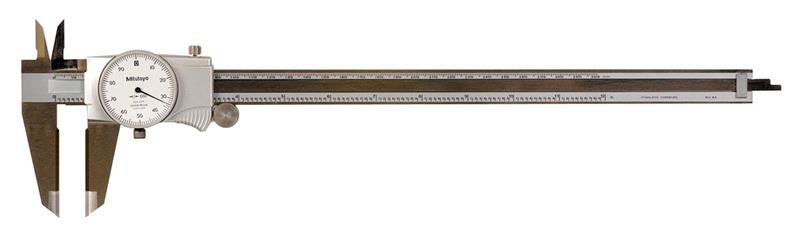

0-12 Inch, .001 Inch Dial Caliper, .1 Inch/Revolution, White Face, Carbide OD/ID Jaws

  • Item Code: 505-748
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New designed dial movement for ultra smooth sliding and high shock protection.
    • Titanium Nitride (TiN) coating is applied to the sliding surface to increase wear resistance.
    • Lock screw for dial bezel and for holding the sliding jaw postion.

Tech Specs

Back To Top
Individual or Set Individual
Resolution or Graduation .001 In
Case Material Plastic Case
Depth Rod Shape Rectangular
Accuracy ±.002 In
Primary (Outside Diameter) Contact Point Material Carbide
Brand Mitutoyo
Face Color White
Primary Measuring Range Upper - Inch 12 In
Range 0 - 12 In
Case Part Number 05RZA077
Primary Measuring Range Lower - Inch 0 In
Dial Face Reading 0-100
Mechanical or Digital Mechanical
Secondary (Inside Diameter) Contact Point Material Carbide
Full Stroke Range .1 In
