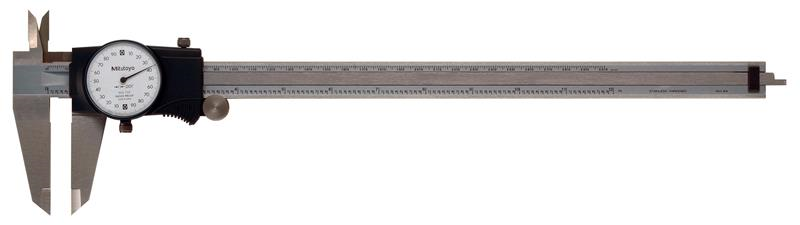

0-12 Inch, 0.001 Inch Dial Caliper, 0.2 Inch/Revolution, White Face

  • Item Code: 505-749
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New designed dial movement for ultra smooth sliding and high shock protection.
    • Titanium Nitride (TiN) coating is applied to the sliding surface to increase wear resistance.
    • Lock screw for dial bezel and for holding the sliding jaw postion.

Tech Specs

Back To Top
Full Stroke Range .2 In
Range 0 - 12 In
Face Color White
Accuracy ±.002 In
Brand Mitutoyo
Case Part Number 05RZA077
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Upper - Inch 12 In
Case Material Plastic Case
Individual or Set Individual
Secondary (Inside Diameter) Contact Point Material Hardened Steel
Dial Face Reading 0-100-200
Primary (Outside Diameter) Contact Point Material Hardened Steel
Depth Rod Shape Rectangular
Resolution or Graduation .001 In
Mechanical or Digital Mechanical
