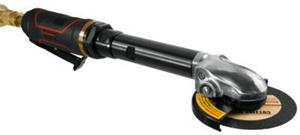

4 Inch, JAT-483, 1 HP Extended Cut-Off Tool
- Item Code: 505483
- Brand: Jet
- Unit Size: 1
Description
Rated to last for those demanding 12 hour days, the R12 Series air tools are built to tackle the most extreme jobs. Engineered for Overtime, these tools feature the superior strength and durability needed across a wide range of applications.
Features
Back To Top- Upgraded Full, 1 HP motors provide the heavy-duty power needed for harsh industrial environments
- Impact resistant composite housings reduce tool weight and user fatigue.
- Easy to use spindle lock system holds the cutting wheel when choosing one of 11 adjustable positions of the swivel guard
- Precision spiral bevel gears transfer torque and speed to spindle for added durability
- Right-angle head design for reaching tight or angled grinding jobs
- Tapered angle gear housing allows greater visibility of targeted work area
- Variable-speed throttle ramps up to maximum RPM, while the safety lock prevents accidental engagement
- 360� Rotating air inlet keeps the air hose tangle free for added safety
- Rear facing exhaust
- Performace @ 90 PSI. Air Inlet NPT 1/4". Min Hose Size 3/8"
Tech Specs
Back To Top| Classification | R12 |
|---|---|
| Free Speed (RPM) | 14,000 |
| Gross Weight (lbs.) | 4.2 |
| Model Number | JAT-483 |
| Overall Length (In.) | 14.6 |
| Sound Power (db) (A) | 96.5 |
| Sound Pressure (db) (A) | 85.5 |
| Spindle Thread (In./TPI) | 3/8 |
| UPC | 731325525823 |
| Vibration Value (m/s²) | 3.8 |
| Weight (Lbs.) | 4.1 |
| Wheel Size (In.) | 4 |
| Air Inlet (NPT/In.) | 1/4 |
| Country of Origin | TW |
| Air Pressure (PSI) | 90 |
| Horse Power (HP) | 1 |
| Air Hose (ID/In.) | 3/8 |
| Body Type | Full, Extended |
| Brand | Jet |
| Air Consumption (CFM) | 5.3 |
