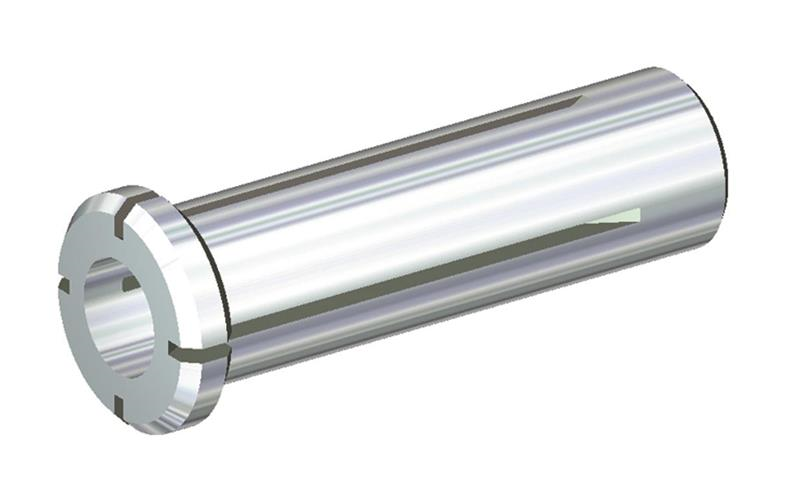

1/2 Inch Outside Diameter, 16mm Head Diameter, Slotted Hydraulic Chuck Sleeve
- Item Code: 50HC060M
- Brand: WIDIA-Erickson
- Unit Size: 1
| Adapt/Shank/Bore Diameter WKPS (In) |
0.2362 |
| Adapt/Shank/Bore Diameter WKPS (mm) |
6.000 |
| Adapt/Shank/Bore Diameter WKPS F |
.2362 |
| Adapter/Shank/Bore Diameter (mm) |
12.700 |
| Body Diameter Max (Metric) |
50.000 |
| Clamping Diameter Max (Inch) |
0.2362 |
| Clamping Diameter Max (mm) |
6.000 |
| Sleeve Capacity Max (Inch) |
0.2362 |
| Sleeve Capacity Max (mm) |
6.000 |
| Sleeve Capacity Minimum (Inch) |
0.2359 |
| Sleeve Capacity Minimum (mm) |
5.992 |
| Adapter/Shank/Bore Diameter (Fractional) |
1/2 |
| Body Diameter 1 Workpce Side (mm) |
16.000 |
| Gage Length 1 (Inch) |
0.1575 |
| Units of Tool (Extract) |
MM - Metric |
| Adapter Size Machine Side-EPP |
0500 |
| Coolant Supply |
Yes |
| Overall Length (Metric) |
44.000 |
| Catalog Sleeve Series |
HC500 |
| Gage Length 1 (Metric) |
4.000 |
| Adapter/Shank/Bore Diameter (Inch) |
0.5000 |
| Shank Length (Metric) |
40.000 |
| Adapter Style Machine Side-EPP |
ZYL-01 Straight Shank |
| Shank Length (Inch) |
1.5748 |
| Body Diameter 1 Workpce Side (In) |
0.6299 |
| Body Diameter Max (Inch) |
1.9685 |
| Brand |
WIDIA-Erickson |
| Adapter Type Machine Side-EPP |
ZYL - Cylindrical Adapter |
| Overall Length (Inch) |
1.7323 |
