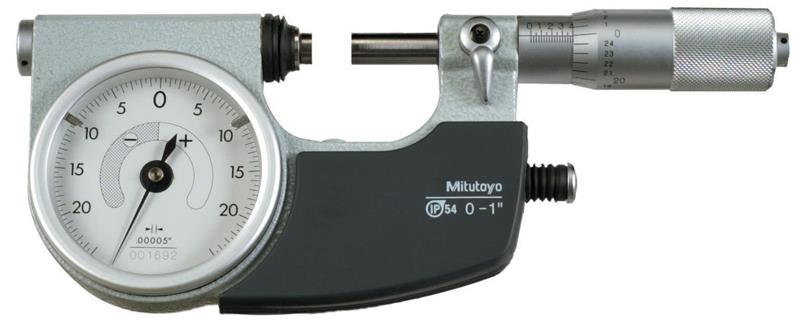

0-1 Inch, 0.00005 Inch, Dial Indicating Micrometer, Carbide Steel Tip, With Retactable Anvil Button

  • Item Code: 510-131
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Retractable anvil with indicator for three-wire measurments of pitch diameter of precision screws and parallelism measuremnets.
    • IP 54
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Accuracy ±.00004 In
Case Part Number 04MZA081
Primary Measuring Range Upper - Inch 1 In
Parallelism .000024 In
Spindle Face Flat
Primary (Outside Diameter) Contact Point Material Carbide
Resolution or Graduation .00005 In
Contact Point Diameter 8mm
Individual or Set Individual
Measuring Force 5-10N
Contact Point Flatness .000012 In
Finish Enamel
Primary Measuring Range Lower - Inch 0 In
Range 0 - 1 In
Case Material Plastic Case
Clutch Ratchet Stop
Face Color White
Spindle Lock Y
Brand Mitutoyo
Mechanical or Digital Mechanical
Thimble Diameter Measurement 21mm
IP Rating IP54
