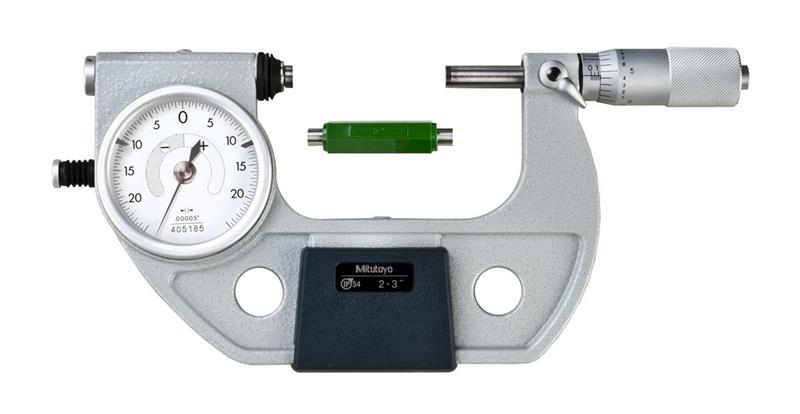

2 Inch - 3 Inch, 0.00005 Inch, Dial Indicating Micrometer, Carbide Steel Tip, With Standard

  • Item Code: 510-133
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Retractable anvil with indicator for three-wire measurments of pitch diameter of precision screws and parallelism measuremnets.
    • IP 56
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Case Part Number 04MZA081
Contact Point Flatness .000012 In
Range 2 - 3 In
Individual or Set Individual
IP Rating IP54
Primary Measuring Range Lower - Inch 2 In
Thimble Diameter Measurement 21mm
Finish Enamel
Primary Measuring Range Upper - Inch 3 In
Spindle Lock Y
Contact Point Diameter 8mm
Measuring Force 5-10N
Parallelism .000024 In
Brand Mitutoyo
Mechanical or Digital Mechanical
Accuracy ±.00004 In
Face Color White
Primary (Outside Diameter) Contact Point Material Carbide
Case Material Plastic Case
Clutch Ratchet Stop
Resolution or Graduation .00005 In
Spindle Face Flat
