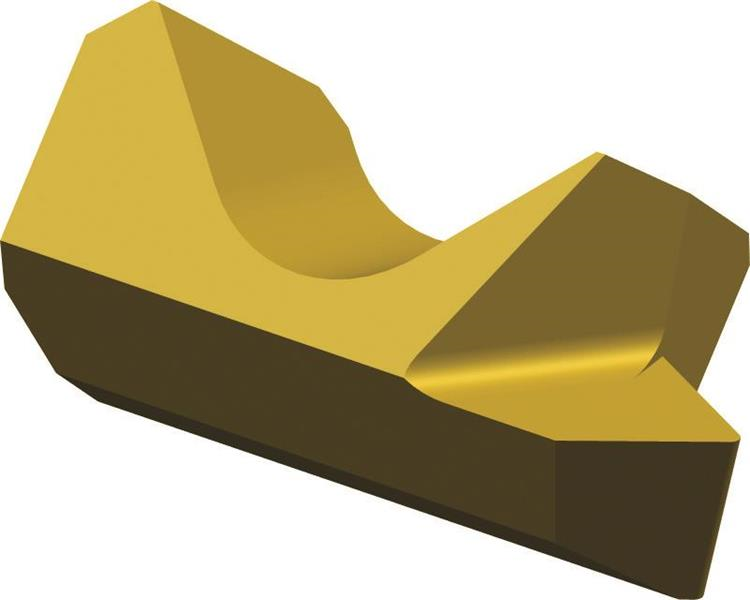

2.38 mm (Size 1) Grade M40 Left Hand S-Loc™ CCW Threading Insert
- Item Code: 510103-M40
- Brand: WIDIA
- Unit Size: 1
Description
Application Material: Steel, Stainless Stell, Cast Iron, Non-Ferrous Materials, High-Temp Alloys
A good general-purpose carbide insert for threading applications.
Features
Back To Top- S-Loc single-ended insert for threading
Tech Specs
Back To Top| TPI Minimum | 10.000 |
|---|---|
| Brand | WIDIA |
| Cutting Depth (Inch) | 0.0938 |
| Units of Tool (Extract) | B - Both Metric & Inch |
| Cutting Depth (Metric) | 2.381 |
| Product Type | Threading |
| Material | Solid Carbide |
| Coating/Finish | TiN |
| Corner Style | Corner Radius |
| Coating System | PVD |
| Insert Shape-EPP | 18 Threading |
