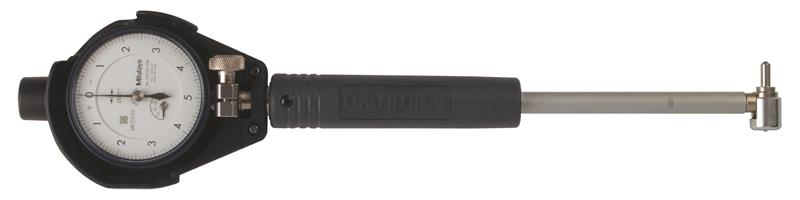

0.7 Inch - 1.4 Inch Dial Bore Gage, Indicator Not Included

  • Item Code: 511-731
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Carbide-tipped contact points for durability.
    • The dial indicator is fully protected by a rugged cover.
    • Optional extension rods can be attached for measuring deep holes.

Tech Specs

Back To Top
Anvil Count 9
Accuracy .0008 In
Primary Measuring Range Lower - Inch .7 In
Brand Mitutoyo
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Upper - Inch 1.4 In
Case Material Plastic Case
Measuring Method 2-point
Case Part Number 21RZA083
Individual or Set Individual
Range .7 - 1.4 In
Stem Diameter Measurement .375 In
Indicator Stability .00004 In
Resolution or Graduation .0005 In
Spacer Count 2
