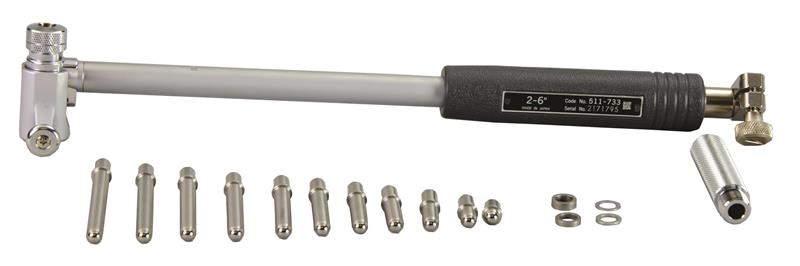

2--6 Inch Dial Bore Gage, indicator not included

  • Item Code: 511-733
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Carbide-tipped contact points for durability.
    • The dial indicator is fully protected by a rugged cover.
    • Optional extension rods can be attached for measuring deep holes.

Tech Specs

Back To Top
Accuracy .0008 In
Case Part Number 21RZA083
Range 2.0 - 6.0 In
Spacer Count 2
Stem Diameter Measurement .375 In
Indicator Stability .00004 In
Individual or Set Individual
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Resolution or Graduation .0005 In
Brand Mitutoyo
Measuring Method 2-point
Anvil Count 9
Primary Measuring Range Lower - Inch 2 In
Primary Measuring Range Upper - Inch 6 In
Case Material Plastic Case
