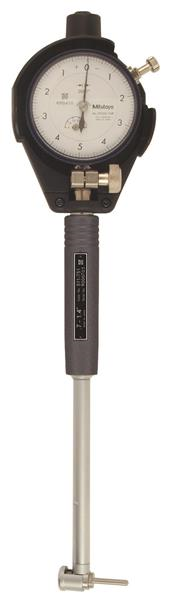

0.7 Inch - 1.4 Inch Dial Bore Gage w/2923SB-10 Dial Indicator, 0.0001 Inch Graduation

  • Item Code: 511-751-20
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Carbide-tipped contact points for durability.
    • The dial indicator is fully protected by a rugged cover.
    • Optional extension rods can be attached for measuring deep holes.

Tech Specs

Back To Top
Indicator Stability .0004 In
Primary Measuring Range Lower - Inch .7 In
Primary Measuring Range Upper - Inch 1.4 In
Range .7 - 1.4 In
Case Part Number 21RZA083
Accuracy .0008 In
Case Material Plastic Case
Resolution or Graduation .0001 In
Spacer Count 2
Individual or Set Individual
Primary (Outside Diameter) Contact Point Material Carbide
Anvil Count 9
Mechanical or Digital Mechanical
Brand Mitutoyo
Measuring Method 2-point
Stem Diameter Measurement .375 In
