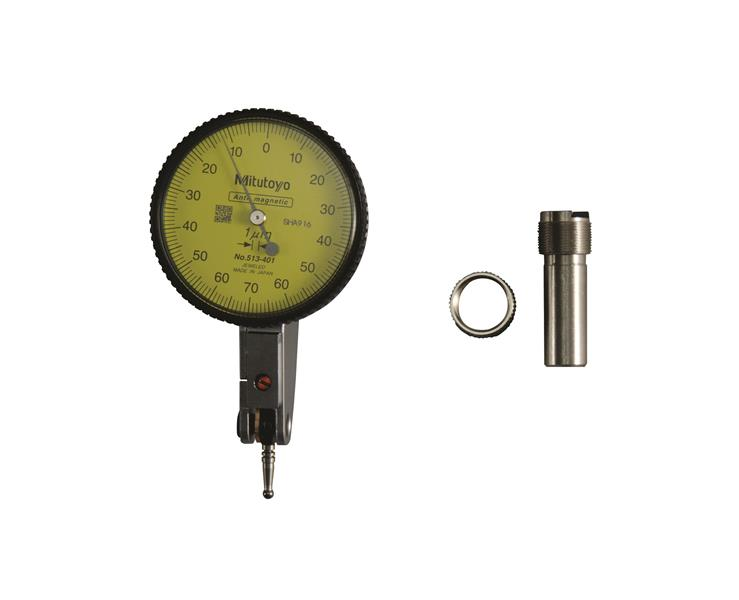

0.14mm, Dial Test Indicator, Basic Set, 0-7-0, 0.001mm Graduation, 8mm Stem, 2mm Contact Point, 12.8mm Length, Anti-Magnet, Jeweled Bearing

  • Item Code: 513-401E
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Perfoms easy and accurate measuement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access.
    • Resistant to water and dust thanks to the one-piece bezel and crystal design with O-ring.
    • The glare-free flat cystal face has a scratch-resistant coating.

Tech Specs

Back To Top
Case Part Number 21RAB973
Contact Point Diameter 2mm
Dial Face Reading 0-70-0
Length Measurement 12.8mm
Primary Measuring Range Upper - Metric 0.14mm
Range 0 - .14mm
Case Material Plastic Case
Measuring Force =.3N
Accuracy 3 mm
Resolution or Graduation 0.001mm
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Metric 0mm
Stem Diameter Measurement 8mm
Brand Mitutoyo
Mechanical or Digital Mechanical
Individual or Set Individual
