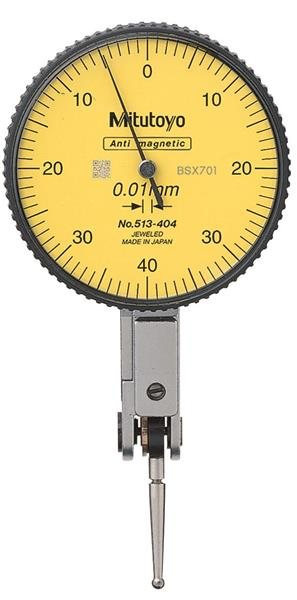

0.8mm, Dial Test Indicator,Basic Set 0-40-0, 0.01mm Graduation, 8mm Stem, 2mm Contact Point, 20.9mm Length, Anti-Magnet, Jeweled Bearing

  • Item Code: 513-404E
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Perfoms easy and accurate measuement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access.
    • Resistant to water and dust thanks to the one-piece bezel and crystal design with O-ring.
    • The glare-free flat cystal face has a scratch-resistant coating.

Tech Specs

Back To Top
Accuracy .0001 in.
Primary Measuring Range Upper - Metric 0.8mm
Individual or Set Individual
Brand Mitutoyo
Dial Face Reading 0-40-0
Mechanical or Digital Mechanical
Case Part Number 21RAB973
Primary Measuring Range Lower - Metric 0mm
Case Material Plastic Case
Length Measurement 20.9mm
Measuring Force =.3N
Contact Point Diameter 2mm
Resolution or Graduation 0.01mm
Face Color Yellow
Primary (Outside Diameter) Contact Point Material Carbide
Range 0 - 0.8mm
Stem Diameter Measurement 8mm
