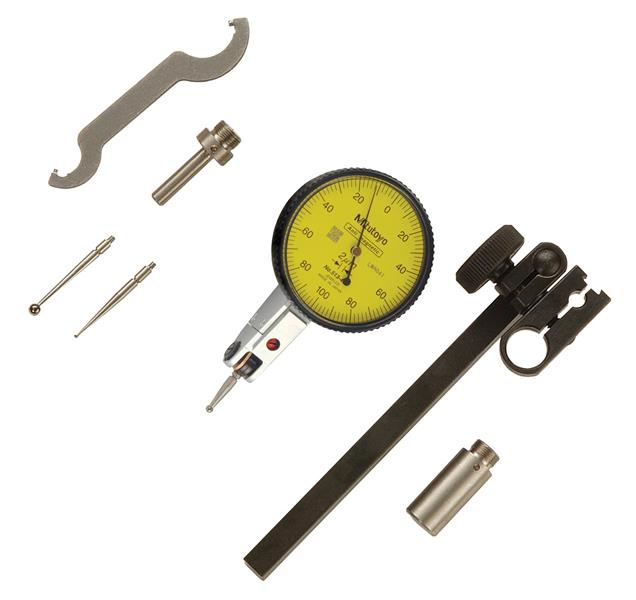

0.2mm, Dial Test Indicator,Basic Set 0-100-0, 0.002mm Graduation, 8/4mm Stems, 2/1/3mm Contact Points, Clamp and Hold Bar, 20.9mm Length, Anti-Magnet, Jeweled Bearing

  • Item Code: 513-405T
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Perfoms easy and accurate measuement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access.
    • Resistant to water and dust thanks to the one-piece bezel and crystal design with O-ring.
    • The glare-free flat cystal face has a scratch-resistant coating.

Tech Specs

Back To Top
Length Measurement 14.7mm
Primary Measuring Range Upper - Metric 0.2mm
Case Material Plastic Case
Contact Point Diameter 1mm; 2mm; 3mm
Face Color Yellow
Measuring Force =.3N
Primary (Outside Diameter) Contact Point Material Carbide
Individual or Set Individual
Case Part Number 21RAB973
Primary Measuring Range Lower - Metric 0mm
Stem Diameter Measurement 4mm; 8mm
Dial Face Reading 0-100-0
Accuracy 3 mm
Brand Mitutoyo
Mechanical or Digital Mechanical
Range 0 - 0.2mm
Resolution or Graduation 0.002mm
