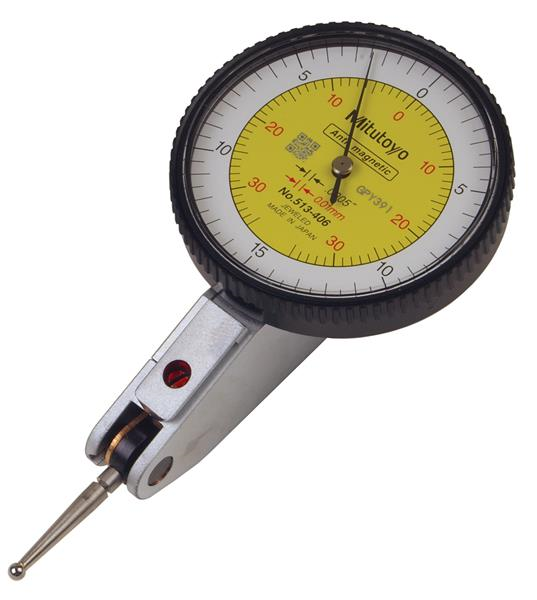

0.03 Inch Range, 0.0005 Inch Dial Graduation, Horizontal Dial Test Indicator

  • Item Code: 513-406
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Perfoms easy and accurate measuement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access.
    • Resistant to water and dust thanks to the one-piece bezel and crystal design with O-ring.
    • The glare-free flat cystal face has a scratch-resistant coating.

Tech Specs

Back To Top
Face Color Yellow/White
Primary Measuring Range Upper - Inch .03 in.
Primary Measuring Range Upper - Metric 0.7mm
Range 0 - .03 In/0 - 0.7mm
Measuring Force =.3N
Resolution or Graduation .0005 in.
Individual or Set Individual
Accuracy .0005 in.
Brand Mitutoyo
Length Measurement 19.9mm
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Stem Diameter Measurement 8mm
Case Part Number 21RAB973
Primary Measuring Range Lower - Metric 0mm
Case Material Plastic Case
Contact Point Diameter 2mm
Dial Face Reading 0-15-0, 0-35-0
Primary Measuring Range Lower - Inch .0001 in.
