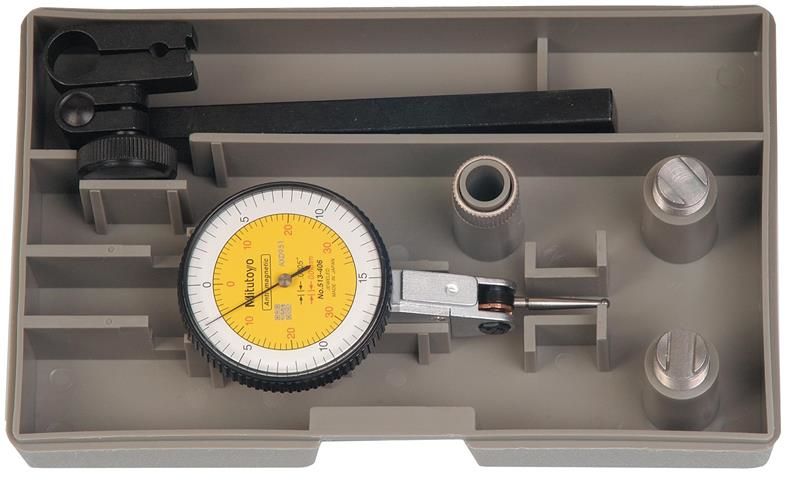

0.03 Inch Range, 0.0005 Inch Dial Graduation, Horizontal Dial Test Indicator

  • Item Code: 513-406T
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Perfoms easy and accurate measuement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access.
    • Resistant to water and dust thanks to the one-piece bezel and crystal design with O-ring.
    • The glare-free flat cystal face has a scratch-resistant coating.

Tech Specs

Back To Top
Dial Face Reading 0-15-0, 0-35-0
Case Material Plastic Case
Contact Point Diameter 2mm
Range 0 - .03 In/0 - 0.7mm
Measuring Force =.3N
Primary Measuring Range Upper - Metric 0.7mm
Resolution or Graduation .0005 in.
Case Part Number 21RAB973
Length Measurement 19.9mm
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Metric 0mm
Stem Diameter Measurement 8mm
Accuracy .0005 in.
Mechanical or Digital Mechanical
Brand Mitutoyo
Individual or Set Individual
Primary Measuring Range Lower - Inch 0 in.
Primary Measuring Range Upper - Inch .03 in.
