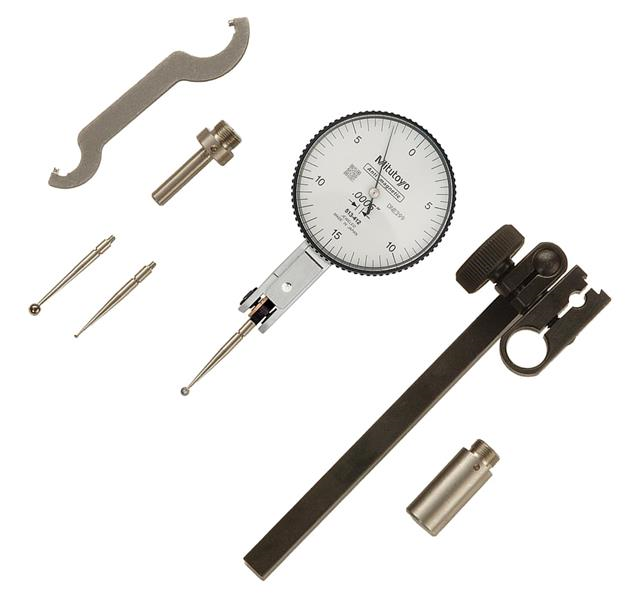

0.03 Inch Range, 0.0005 Inch Dial Graduation, Horizontal Dial Test Indicator

  • Item Code: 513-412T
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Perfoms easy and accurate measuement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access.
    • Resistant to water and dust thanks to the one-piece bezel and crystal design with O-ring.
    • The glare-free flat cystal face has a scratch-resistant coating.

Tech Specs

Back To Top
Accuracy .0015 in.
Contact Point Diameter .0001 in.
Length Measurement 33.9mm
Primary Measuring Range Lower - Inch .0002 in.
Range .0001 in.
Resolution or Graduation .00012 in.
Case Part Number 21RAB973
Face Color White
Brand Mitutoyo
Individual or Set Individual
Stem Diameter Measurement .0001 in.
Dial Face Reading 0-15-0
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Case Material Plastic Case
Primary Measuring Range Upper - Inch .0001 in.
Measuring Force =.2N
