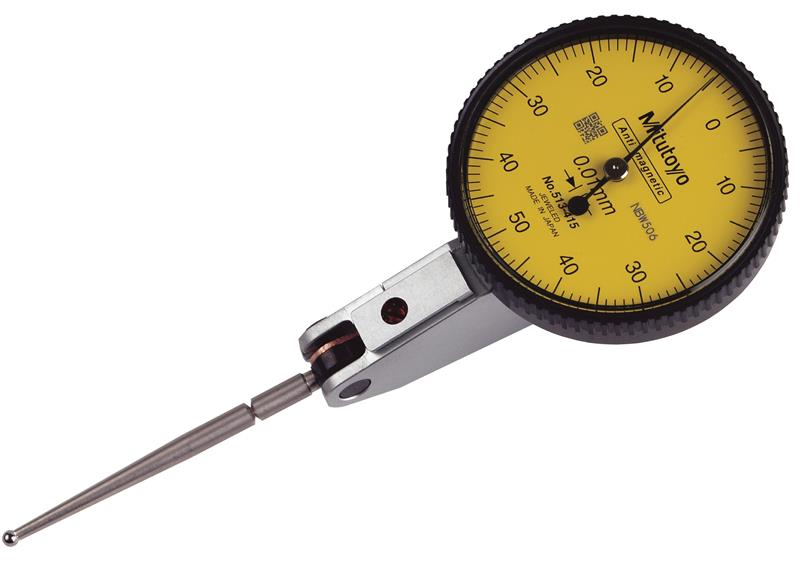

1 mm Range, 0.01 mm Dial Graduation, Horizontal Dial Test Indicator

  • Item Code: 513-415
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Perfoms easy and accurate measuement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access.
    • Resistant to water and dust thanks to the one-piece bezel and crystal design with O-ring.
    • The glare-free flat cystal face has a scratch-resistant coating.

Tech Specs

Back To Top
Dial Face Reading 0-50-0
Length Measurement 44.5mm
Measuring Force =.2N
Resolution or Graduation 0.01mm
Case Part Number 21RAB973
Primary Measuring Range Lower - Metric 0mm
Contact Point Diameter 2mm
Brand Mitutoyo
Mechanical or Digital Mechanical
Accuracy 10 mm
Case Material Plastic Case
Primary Measuring Range Upper - Metric 1mm
Individual or Set Individual
Face Color Yellow
Primary (Outside Diameter) Contact Point Material Carbide
Range 0 - 1mm
Stem Diameter Measurement 8mm
