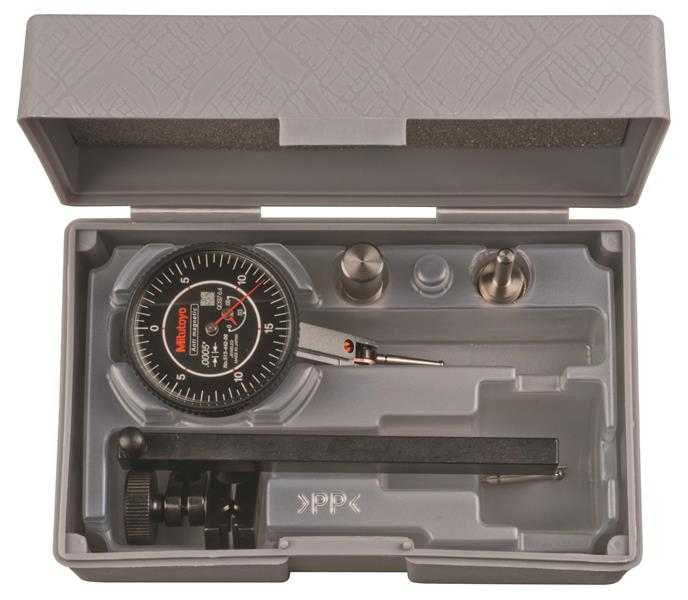

9 Piece, 0 to 0.06 Inch Measuring Range, 1.5748 Inch Dial Diameter, 0 to 15 to 0 Dial Reading, Black Test Indicator Kit

  • Item Code: 513-442T-06
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Perfoms easy and accurate measuement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access.
    • Resistant to water and dust thanks to the one-piece bezel and crystal design with O-ring.
    • The glare-free flat cystal face has a scratch-resistant coating.

Tech Specs

Back To Top
Primary Measuring Range Lower - Inch .0016 in.
Mechanical or Digital Mechanical
Resolution or Graduation .0005 in.
Stem Diameter Measurement 3/8 in.
Brand Mitutoyo
Contact Point Diameter .039 in.; .079 in.; .118 in.
Individual or Set Individual
Primary Measuring Range Upper - Inch .06 in.
Case Part Number 21CZA195
Accuracy .0005 in.
Case Material Plastic Case
Dial Face Reading 0-15-0
Measuring Force =.3N
Face Color Black
Length Measurement 19.9mm
Primary (Outside Diameter) Contact Point Material Carbide
Range 0 - .06 in.
