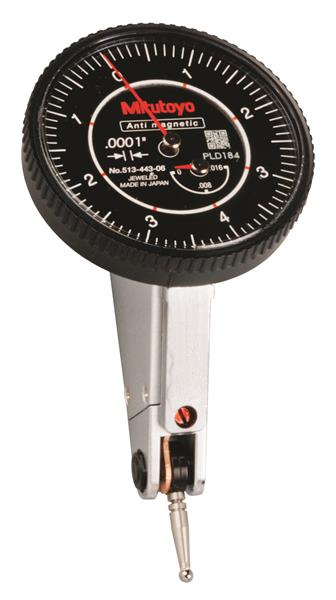

0.016 Inch, Dial Test Indicator, 20 Degree Tilted Face, Basic Set 0-4-0, 0.0001 Inch Grauation, 3/8 Inch Stem, 0.079 In Contact Point, 15mm Length, Anti-Magnet, Jeweled Bearing, Rev Counter, Black Dial

  • Item Code: 513-443-06
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Perfoms easy and accurate measuement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access.
    • Resistant to water and dust thanks to the one-piece bezel and crystal design with O-ring.
    • The glare-free flat cystal face has a scratch-resistant coating.

Tech Specs

Back To Top
Contact Point Diameter .0002 in.
Resolution or Graduation .0001 in.
Primary (Outside Diameter) Contact Point Material Carbide
Individual or Set Individual
Length Measurement 15mm
Case Material Plastic Case
Dial Face Reading 0-4-0
Measuring Force =.3N
Primary Measuring Range Upper - Inch .0001 in.
Range .00012 in.
Primary Measuring Range Lower - Inch .0001 in.
Stem Diameter Measurement .0001 in.
Accuracy .0001 in.
Face Color Black
Brand Mitutoyo
Case Part Number 21CZA195
Mechanical or Digital Mechanical
