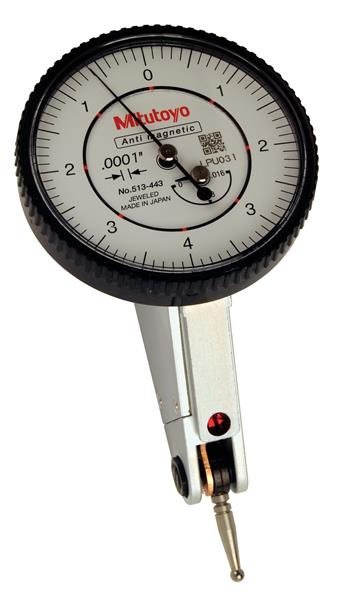

0.016 Inch, Dial Test Indicator, 20 Degree Tilted Face, Basic Set 0-4-0, 0.0001 Inch Graduation, 3/8 Inch Stem, 0.079 In Contact Point, 15mm Length, Anti-Magnet, Jeweled Bearing, Rev Counter

  • Item Code: 513-443-10A
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Perfoms easy and accurate measuement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access.
    • Resistant to water and dust thanks to the one-piece bezel and crystal design with O-ring.
    • The glare-free flat cystal face has a scratch-resistant coating.

Tech Specs

Back To Top
Dial Face Reading 0-4-0
Range 0 - .016 in.
Brand Mitutoyo
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Resolution or Graduation .0001 in.
Face Color White
Primary Measuring Range Lower - Inch 0 in.
Case Material Plastic Case
Contact Point Diameter .079 in.
Individual or Set Individual
Measuring Force =.3N
Primary Measuring Range Upper - Inch .016 in.
Stem Diameter Measurement 3/8 in.
Case Part Number 21CZA195
Length Measurement 15mm
Accuracy .0001 in.
