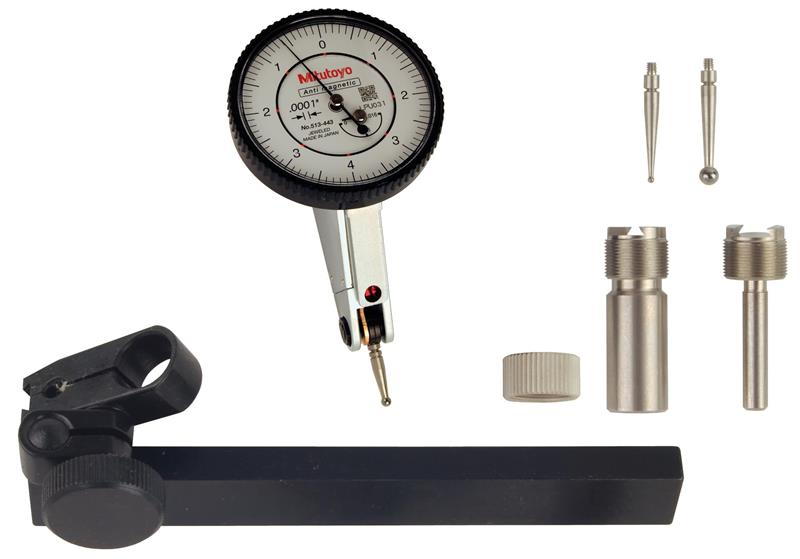

0.016 In, Dial Test Indicator, 20 Degree Tilted Face, Full Set 0-4-0, 0.0001 Inch Graduation, 3/8 Inch Stems, .079 In/.039 In/.118 In Contact Points, Clamp and Hold Bar, 15mm Length, Anti-Magnet, Jeweled Bearing, Rev Counter

  • Item Code: 513-443T
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Perfoms easy and accurate measuement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access.
    • Resistant to water and dust thanks to the one-piece bezel and crystal design with O-ring.
    • The glare-free flat cystal face has a scratch-resistant coating.

Tech Specs

Back To Top
Primary Measuring Range Lower - Inch .0001 in.
Primary Measuring Range Upper - Inch .016 in.
Dial Face Reading 0-4-0
Face Color White
Accuracy .0002 in.
Case Part Number 21CZA195
Brand Mitutoyo
Contact Point Diameter .039 in.; .079 in.; .118 in.
Mechanical or Digital Mechanical
Stem Diameter Measurement 3/8 in.
Case Material Plastic Case
Primary (Outside Diameter) Contact Point Material Carbide
Resolution or Graduation .0001 in.
Individual or Set Individual
Length Measurement 15mm
Range 0 - .016 in.
Measuring Force =.3N
