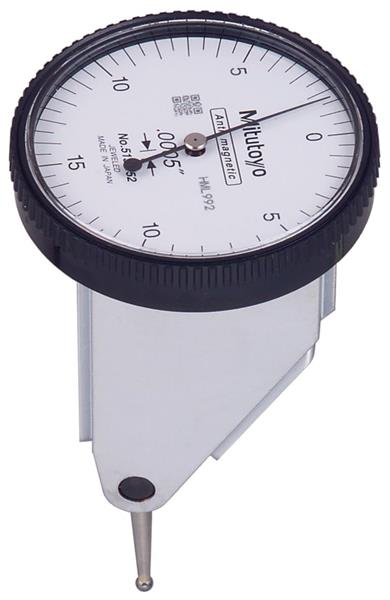

0.03 Inch Range, 0.0005 Inch Dial Graduation, Vertical Dial Test Indicator

  • Item Code: 513-452
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Specially designed for easy viewing of measurements.
    • Resistant to water and dust thanks to the one-piece bezel and crystal design with O-ring.
    • The glare-free flat cystal face has a scratch-resistant coating.

Tech Specs

Back To Top
Contact Point Diameter .079 in.
Face Color White
Primary Measuring Range Lower - Inch 0 in.
Dial Face Reading 0-15-0
Length Measurement 19.9mm
Primary (Outside Diameter) Contact Point Material Carbide
Brand Mitutoyo
Range 0 - .03 in.
Accuracy .0005 in.
Case Material Plastic Case
Individual or Set Individual
Measuring Force =.3N
Primary Measuring Range Upper - Inch .03 in.
Stem Diameter Measurement 3/8 in.
Case Part Number 21CZA195
Mechanical or Digital Mechanical
Resolution or Graduation .0005 in.
