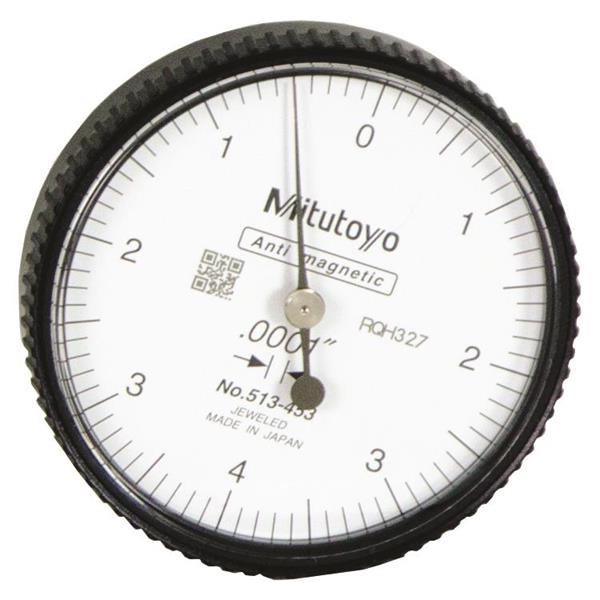

0.008 Inch Range, 0.0001 Inch Dial Graduation, Vertical Dial Test Indicator

  • Item Code: 513-453
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Perfoms easy and accurate measuement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access.
    • Resistant to water and dust thanks to the one-piece bezel and crystal design with O-ring.
    • The glare-free flat cystal face has a scratch-resistant coating.

Tech Specs

Back To Top
Length Measurement 15mm
Primary Measuring Range Upper - Inch .008 in.
Range 0 - .008 in.
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Case Material Plastic Case
Face Color White
Measuring Force =.3N
Accuracy .0001 in.
Contact Point Diameter .079 in.
Dial Face Reading 0-15-0
Case Part Number 21CZA195
Resolution or Graduation .0005 in.; .0001 in.; .00005 in.
Brand Mitutoyo
Individual or Set Individual
Primary Measuring Range Lower - Inch 0 in.
Stem Diameter Measurement 3/8 in.
