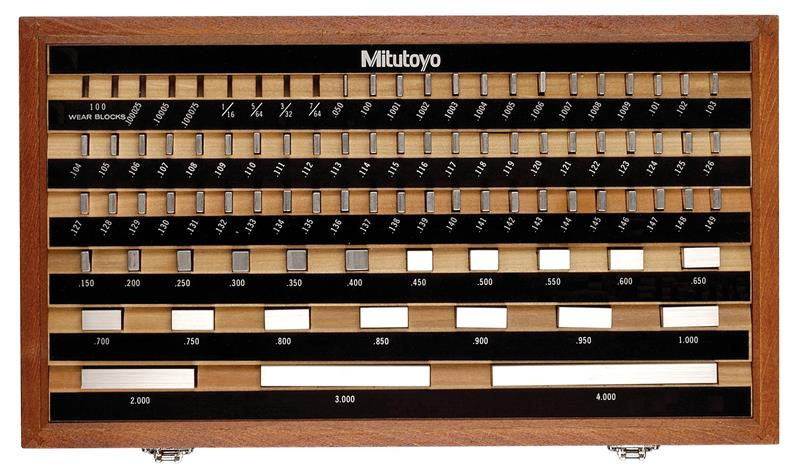

81 Piece, 0.05 to 4 Inch, Grade 0, Steel Rectangular Gage Block Set

  • Item Code: 516-902-26
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Can be measured in both vertical and horizontal posture.
    • Parallelism is measrued by attaching the optiacl parallel to the set.

Tech Specs

Back To Top
Calibration Grade 0
Case Part Number 602622
Length Range 1 .1001 - .1009 In
Length Range 2 .101 In - .149 In
Length Range 3 .05 In - .95 In
Length Range 4 1 In - 4 In
Pieces Per Set 81
Range 1 Block Quantity 9
Range 1 Step 0.0001 In
Range 2 Block Quantity 49
Range 2 Step 0.001 In
Range 3 Step 0.05 In
Range 4 Block Quantity 4
Range 4 Step 1 In
Individual or Set Set
Case Material Wooden Case
Square or Rectangular Rectangular
Blocks Per Set 81
Range 0.1001 - 4 In
Brand Mitutoyo
Material Steel
Range 3 Block Quantity 19
