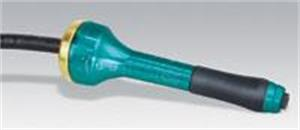

.1 hp Straight-Line Pencil Grinder, 50,000 RPM, Turbine Air Motor, Rear Exhaust, 3 mm Collet

  • Item Code: 51704
  • Brand: Dynabrade
  • Unit Size: 1

Description

Turbine-Driven Air Motor Models are ideal for precision deburring and finishing on a variety of surfaces. High-efficiency air motor has no wearable gears, vanes or blades. Oil-free operation minimizes maintenance time and repair costs. Air motor is controlled with patented governor, providing constant tool speed under load. Quality high-speed bearings are included.

Features Tech Specs

Features

Back To Top
    • Tool has integrated collet with 3 mm Collet Insert (51673)
    • Housing has non-slip rubber grip for additional control. Tactile cues on shaft end alert operator to rotating collet area.
    • Changing of attachment is achieved with easy, two-wrench maneuver. Includes high-quality flexible air hose.
    • Gold Tool Cap for easy tool speed identification when using multiple models.

Tech Specs

Back To Top
hp (W) .1 (75)
Air Inlet Thread 1/4" NPT
Brand Dynabrade
Hose I.D. Size Inches (mm) 1/4" (6)
Motor Free Speed (RPM) 50,000
Collet Size 3 mm
Exhaust Type Rear
Length Inches (mm) 5-1/4" (132)
Height Inches (mm) 1-1/2 (39)
