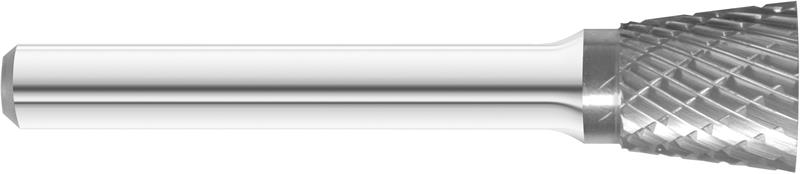

3/8 (.3750) Inverted Cone (SN-2) Single Cut Solid Carbide Burr (Rotary File)
- Item Code: 52257-FULLERTON
- Brand: Fullerton
- Unit Size: 1
Description
Fullerton's solid carbide burrs (rotary files) are available in a wide range of shapes, sizes and unique flute geometries. Rotary files are often used to clean (deburr) castings.
Features
Back To Top- Solid Carbide Head
- Industry Standard forms: SA, SB, SC, SD, SE, SF, SG, SM, SL, SH, SK, SJ, SN, and SNE
- Available in several cuts to meet your needs: Single Cut, Double Cut, Chip Breaker, Diamond, Fast Mill Cut (Aluma Cut)
- Fine and Coarse Available on Quote
- .2500�� Shank Tools provided with Steel Shanks
Tech Specs
Back To Top| Direction of Cut | RH |
|---|---|
| Flute Length (Decimal Inch) | 0.3750 |
| Metric Cutting Diameter | 9.53 mm |
| Overall Length (mm) | 53.98 |
| Point Include Angle (Degrees) | 13 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Flute Length (Inch) | 3/8 |
| No. of Flutes/Teeth | 20 |
| Overall Length (Decimal Inch) | 2.1250 |
| Weldon Flat | No |
| End Type | SE |
| Flute Length (mm) | 9.53 |
| Material | Solid Carbide |
| Coating/Finish | None |
| Series | BURR |
| Shank Diameter (mm) | 6.35 |
| Shape Identifier | SN-2 |
| Coolant Through | No |
| Cut Number | 1 |
| Brand | Fullerton |
| Burr Shape | Cone - Inverted Single Cut |
| Cut Name | Single |
| Metric/Inch | Inch |
| Flute Spiral Direction | RH |
| Fractional Cutting Diameter | 3/8" |
| Shank Diameter (Inch) | 1/4 |
| Tool Number | SN-2 |
| Decimal Cutting Diameter | 0.3750" |
| Overall Length (Inch) | 2-1/8 |
