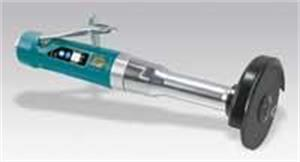

1 hp, 15,000 RPM, Rear Exhaust, 3/8-24 Spindle Thread, 4 Inch (102 mm) Dia. Straight-Line Type 1 Extension Wheel Grinder

  • Item Code: 52380
  • Brand: Dynabrade
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Type 1 Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.
    • 4" Diameter, Straight Line, 1 hp, 6" Extension, 15,000 RPM.
    • Accepts optional 4" diameter Type 1 Wheel, with 3/8" center hole (maximum wheel width of 1/4").
    • Governor-controlled motor maintains RPM under heavy load; rear exhaust. Safety-lock lever is included on all models.
    • Standard cushioned grip enhances operator comfort and allows additional control.

Tech Specs

Back To Top
hp (W) 1
Exhaust Type Rear
Free Speed RPM 15,000
Type 1 Grinding Wheel Dia. Inch (mm) 4" (102)
Brand Dynabrade
Hose I.D. Size Inch (mm) 3/8" (10)
Spindle Thread 3/8"-24 Male
Height Inch (mm) 4-1/2" (113)
Length Inch (mm) 14-1/4" (362)
