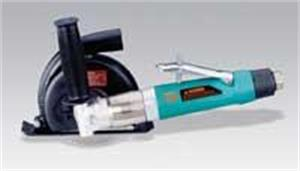

1 hp, 12,000 RPM, Rear Exhaust, 3/8-24 Spindle Thread, 5 Inch (127 mm) Dia. 7° Offset Vacuum Cut-Off Wheel Tool
- Item Code: 52438-DYNABRADE
- Brand: Dynabrade
- Unit Size: 1
Description
Ideal for use with optional 5" diameter Diamond Cut-Off Wheels. Adjustable wheel guard has vacuum port (1-1/4" outside diameter) that diverts airborne dust and debris to to optional vacuum source.
Features
Back To Top- Vacuum Cut-Off Wheel Tool, for efficient cutting with dust and debris removal.
- 5" Diameter, Right Angle, 1 hp, 12,000 RPM, Rear Exhaust.
- Powerful, high-quality air motor is effective for cutting through metals, thick fiberglass over-wrap and fiber spray.
- Blade guide allows operator to expose up to 1-1/8" depth of Cut-Off Wheel if required. Safety-lock lever is included.
Tech Specs
Back To Top| Length Inch (mm) | 14-5/8" (371) |
|---|---|
| Type 1 Diamond Cut-Off Wheel Dia. Inch (mm) | 5" (127) |
| hp (W) | 1 |
| Brand | Dynabrade |
| Free Speed RPM | 12,000 |
| Spindle Thread | 3/8"-24 Male |
| Height Inch (mm) | 4-1/2" (113) |
| Exhaust Type | Rear |
| Hose I.D. Size Inch (mm) | 3/8" (10) |
