1.3 hp, 6,000 RPM, Rotational Exhaust, 5/8-11 Spindle Thread, 7 Inch (178 mm) Dia. Right Angle Disc Sander, Central Vacuum

  • Item Code: 52597
  • Brand: Dynabrade
  • Unit Size: 1

Description

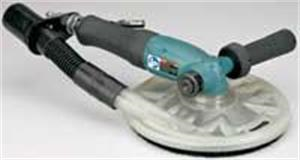

7" Dia., 1.3 hp, Right Angle Disc Sander with unique Vacuum Shroud captures most contaminants. This Central Vacuum Model (52597) runs free at 6,000 RPM and has a 5/8"-11 Male Spindle Thread. 1-1/4" diameter Swivel Cuff (96004) improves maneuverability. Tool includes Vibration Dampening Side Handle (53134) for left or right hand use.

Features Tech Specs

Features

Back To Top
    • Vacuum Shroud captures airborne contaminants such as Hexavalent Chromium. An essential tool for nuclear plants, aerospace, wind energy, and marine markets. For use on non-ferrous surfaces such as Carbon Fiber, Composites, Fiberglass, Turbine Blades, more.
    • Tool accepts optional 7" (178 mm) diameter Abrasive Discs with 7/8" (22 mm) center hole. Includes 51151 Backing Pad, which is 7" (178 mm) in diameter, and flange w/nut. Lightweight non-marring Vacuum Shroud is constructed of high-quality clear urethane. 3/4" (19 mm) high Shroud Brush (02342) assists in capture of airborne contaminants.
    • Includes Conductive Hose & Cuffs, to shield operator from electrostatic discharge (ESD). Shroud has View-Port which allows operator to see abrasive disc and work surface. Quiet, robust 1.3 hp (970 W) air motor is governor-controlled to maintain consistent RPM under load.
    • Convenient Spindle Lock allows quick and easy changing of backing pad or abrasive. Wick-Lube System extends gear life with regular lubrication. Gear Oil (95848) & Gear Oil Gun (95541) included with tool, and also sold separately.

Tech Specs

Back To Top
Height Inch (mm) 3-7/8" (104)
Length Inch (mm) 14-5/8" (373)
Free Speed RPM 6,000
Backing Pad Diameter Inch (mm) 7" (178)
hp (W) 1.3 (970)
Hose I.D. Size Inch (mm) 3/8" (10)
Tool Spindle Thread 5/8"-11 Male
Air Inlet Thread 3/8" NPT
Exhaust Type Side
Brand Dynabrade
