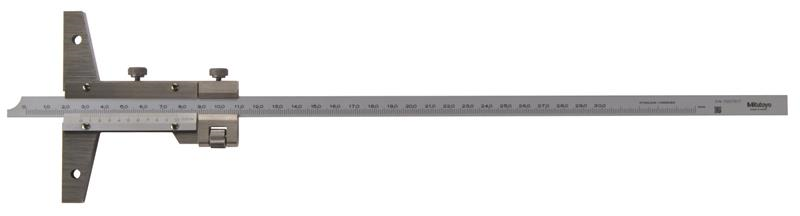

0 to 300mm Measurement Range, 410mm Rule Length, 4 Inch Base Length, Vernier Depth Gage

  • Item Code: 527-103
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Made of hardened stainless steel.
    • Base and measuring faces are hardened and micro-lapped.
    • Optional wider extension bases are available.

Tech Specs

Back To Top
Case Part Number 140057
Length Measurement 3.937 In (Base)
Width .236 In(Base)
Case Material Leather Sleeve
Primary (Outside Diameter) Contact Point Material Hardened Steel
Range 0 - 300mm
Brand Mitutoyo
Individual or Set Individual
Mechanical or Digital Mechanical
Primary Measuring Range Upper - Metric 300mm
Resolution or Graduation 0.02mm
Primary Measuring Range Lower - Metric 0mm
Accuracy ±0.04mm
Material Hardened Stainless Steel
