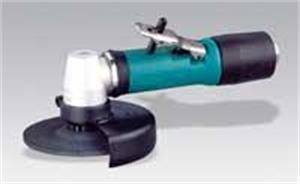

.4 hp, 12,000 RPM, Geared, Rear Exhaust, 3/8-24 Spindle Thread, 4 Inch (102 mm) Dia. Right Angle Depressed Center Wheel Grinder

  • Item Code: 52706-DYNABRADE
  • Brand: Dynabrade
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Depressed Center Wheel Grinder, for fast weld and stock removal, rust and scale removal, heavy deburring.
    • 4" Diameter, Right Angle, .4 hp, Rear Exhaust, 12,000 RPM.
    • Accepts optional 4" diameter Type 27 Reinforced Depressed Center Wheel, with 3/8" center hole (wheel width of 1/8" to 1/4").
    • Dual-wick lubrication system saturates gears with oil for increased performance, extended life and reduced downtime (following proper maintenance procedures). Tool includes 95848 Gear Oil and 95541 Gear Oil Gun.
    • 12,000 RPM air motor has Kevlar phenolic vanes for longer life. Safety-lock throttle lever, wheel guard and flanges are included.

Tech Specs

Back To Top
Length Inch (mm) 7-1/2" (189)
Type 27 Grinding Wheel Dia. Inch (mm) 4" (102)
Brand Dynabrade
Hose I.D. Size Inch (mm) 1/4" (6)
Height Inch (mm) 3" (76)
Spindle Thread 3/8"-24 Male
Exhaust Type Rear
hp (W) 0.4
Free Speed RPM 12,000
