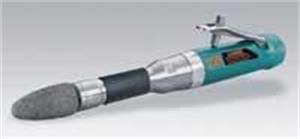

1 hp, Straight-Line, 12,000 RPM, Rear Exhaust, 3/8-24 Spindle Thread, Cone or Plug 6 Inch (152 mm) Extension Wheel Grinder

  • Item Code: 52719-DYNABRADE
  • Brand: Dynabrade
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Cone or Plug Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.
    • Straight Line, 1 hp, Rear Exhaust, 6" Extension, 12,000 RPM.
    • Accepts optional Abrasive Cone or Plug Wheel, 1-1/4" diameter. Governor-controlled motor maintains RPM under heavy load.
    • Safety-lock lever is included on all models. Standard cushioned grip enhances operator comfort and offers additional control.
    • Industrial applications in fabrication plants, welding shops, foundries, steel mills and shipyards.

Tech Specs

Back To Top
Length Inch (mm) 13-1/4" (335)
Maximum Cone or Plug Dia. Inch (mm) 1-1/4" (32)
Exhaust Type Rear
Height Inch (mm) 1-7/8" (48)
Hose I.D. Size Inch (mm) 3/8" (10)
Spindle Thread 3/8"-24 Male
Brand Dynabrade
hp (W) 1
Free Speed RPM 12,000
